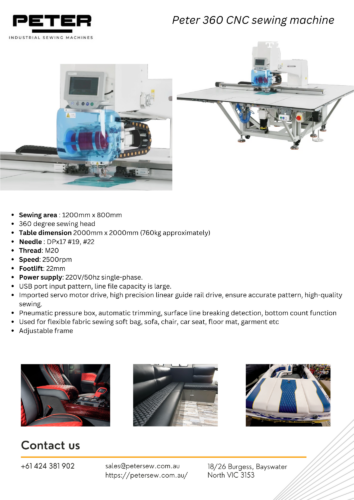

CNC pattern sewing machine

Categories: , , Tag: Brand:

  • Sewing area : 1200mm x 800mm

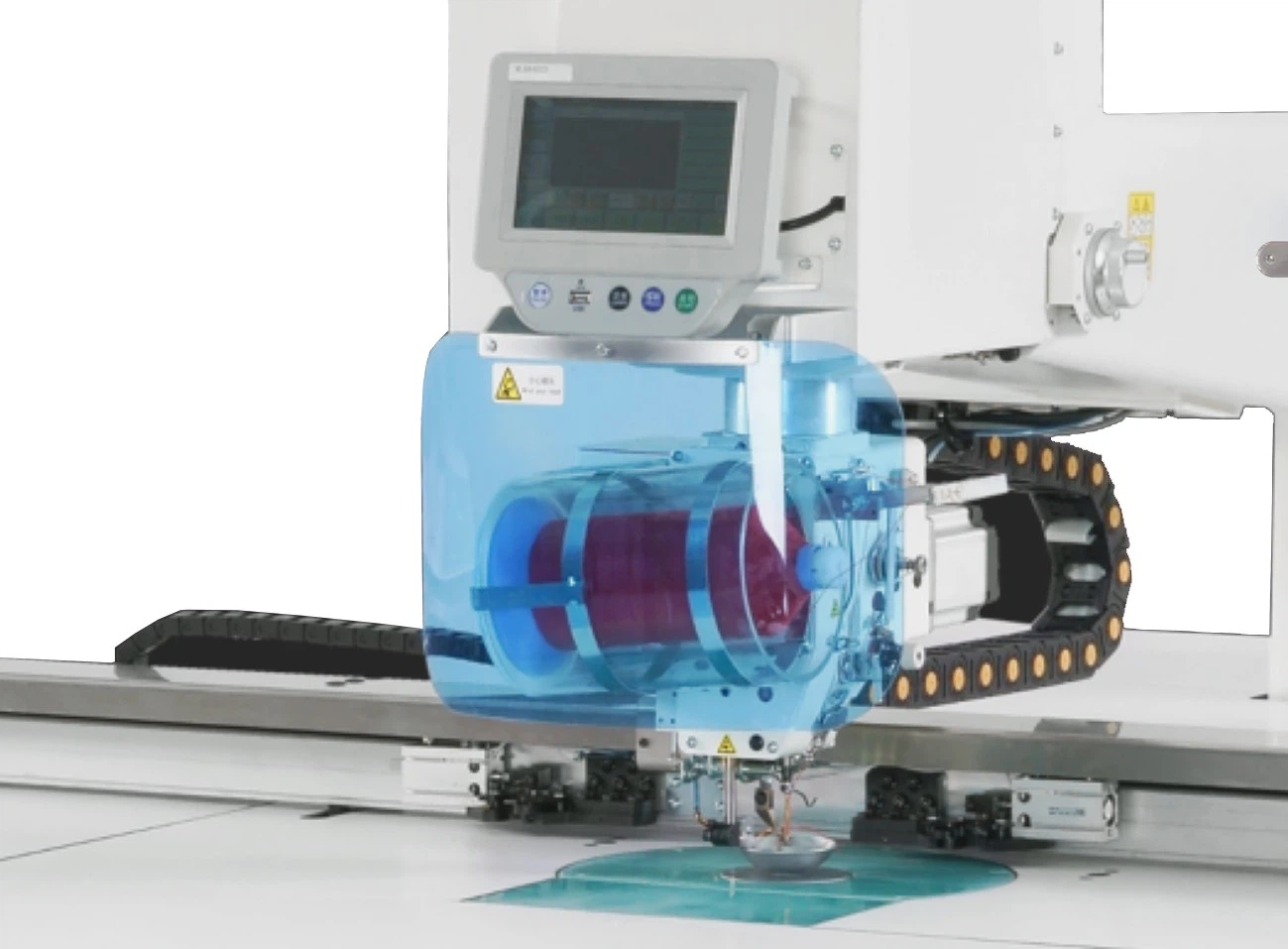

  • 360 degree sewing head
  • Table dimension 2000mm x 2000mm (760kg approximately)
  • Needle : DPx17 #19, #22
  • Thread: M20
  • Speed: 2500rpm
  • Footlift: 22mm
  • Power supply: 220V/50hz single-phase.
  • USB port input pattern, line file capacity is large.
  • Imported servo motor drive, high precision linear guide rail drive, ensure accurate pattern, high-quality sewing.
  • Pneumatic pressure box, automatic trimming, surface line breaking detection, bottom count function
  • Used for flexible fabric sewing soft bag, sofa, chair, car seat, floor mat, garment etc
  • Adjustable frame
